AxC-AE8io – 4 line inputs and 4 outputs on Euroblock
OVERVIEW
APPLICATIONS
SPECIFICATIONS
DOWNLOADS
ORDER CODE

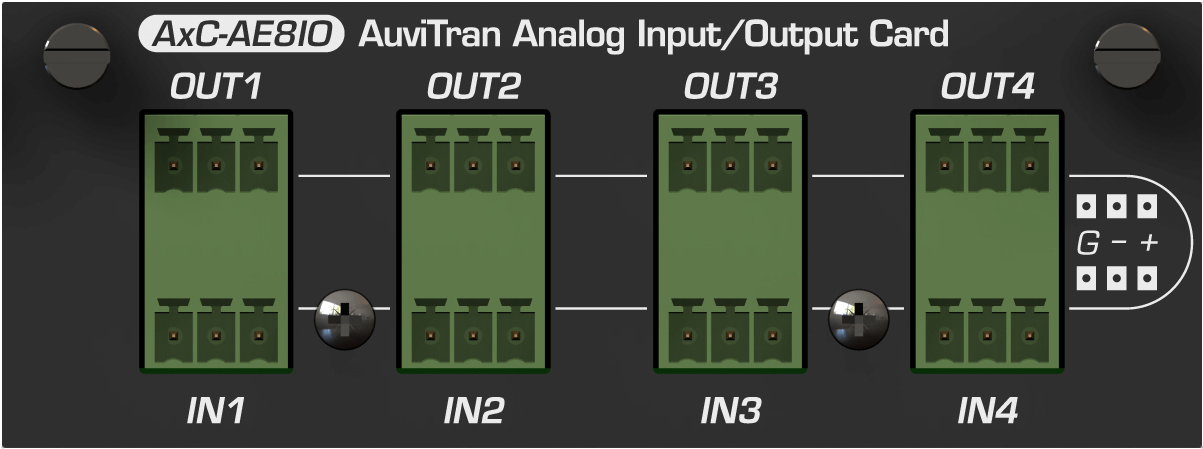

AxC-AE8IO is an eight channels high-end analog input/output AxC card, with Euroblock connectors for the AuviTran Audio ToolBox platform.
The AxC-AE8IO combines high-performance AD and DA converter chips, with an excellent circuit design in a format of one AxC card for high end fixed installation applications.
An internal smart design avoids loud noises during start-up and cut-off. This mechanism meets the constraints of use for high power sound reinforcement systems for professional audio applications.
A 0.5 dB step digital attenuator/gains from -115dB to +12dB and two hardware reference level pads of +10 dBu or +24 dBu are fully controllable via software. It enables fine level calibration for addressing a large panel of applications in professional audio systems.
Attenuation-gain setting and vu-meter can be monitored and controlled individually per channel via network for a remote management, from virtually anywhere.
Two AxC-AE8IO card inserted in an AVBx3-ES100 enables to build 1U 19” unit with high performance 8 analog inputs + 8 analog outputs for professional high end fixed installations.
Fixed installations
Stadiums, concert halls
Public Address and paging systems in museums, theme parks and resorts…
Broadcast studios
Theaters, bars, pubs discos
Exhibitions and conference centers
Public address in transportation terminals …
Recording studios
Live broadcast studios and OB Vans…
Technical Specifications
| General | |||
| Size |
|
||
| Power Supply |
|
||
| Storage: Temp/Humidity (non-condensing) |
|
||
| Operating: Temp/Humidity (non-condensing) |
|
||
| Connectors |
|
||
| Audio inputs | |||
| Number of inputs | Up to 4 analog inputs routed through the AuviTran Audio ToolBox backplane to the other cards | ||
| Number of outputs | Up to 4 analog outputs routed through the AuviTran Audio ToolBox backplane to the other cards | ||
| Audio inputs Specifications | |||
| Sample rate | 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz | ||
| A/D Resolution |
|
||
|
|
||
|
>112 dB A-weighted (> 109 dB un-weighted) | ||
| THD+N (1KHz / BW 22KHz) |
|
||
| inputs specification | Balanced analog on EuroBlock, 10kΩ Input Impedance (differential) | ||
| inputs level pad for 0dBfs | +24dBu or +10dBu configurable by software via network | ||
| inputs volume control | +10dB to -115dB with 0.5 dB step digital control by software via network with click and plop free management | ||
| inputs phase | Phase inversion configurable by software via network | ||
| Audio Outputs Specifications | |||
| Sample rate | 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz | ||
| A/D Resolution |
|
||
|
20Hz – 20kHz (± 0.15dB) | ||
|
>112 dB A-weighted (> 109 dB un-weighted) | ||
| THD+N (1KHz / BW 22KHz) |
|
||
| Output specification | Balanced on Euroblock connectors <100Ω Output Impedance | ||
| Output level pad for 0dBfs |
|
||
| Output volume control | +10dB to -115dB with 0.5 dB step digital control by software via network with click and plop free management Digital automatic mute @ zero-data with plop-free output mute |
||
| Output phase | Phase inversion configurable by software via network | ||
| Integration Environment | |||
|
AxC-AE8IO is one the cards for the AuviTran Audio ToolBox platform | ||
| AVS-Monitor | AVS-ESMonitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots | ||
| OS Supported |
|
||
AxC-AE8IO 4 analog In + 4 analog Out for Audio ToolBox on Euroblock
