AxC-DS32io – 8 AES3 input + 8 AES3 outputs on D-SUB

loading...
OVERVIEW
APPLICATION
SPECIFICATIONS
DOWNLOADS
ORDER CODE

AxC-DS32IO card provides high count AES/EBU digital inputs and outputs interface to the AuviTran Audio ToolBox platform.

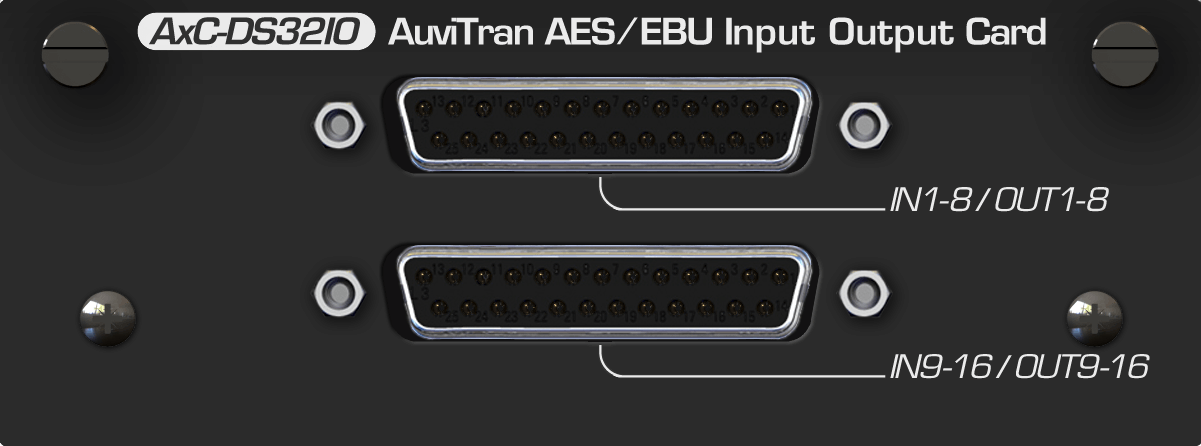

AxC-DS32IO features eight stereo AES/EBU digital inputs plus eight stereo AES/EBU digital outputs on two D-Sub 25 pins connectors (four AES/EBU stereo inputs and stereo outputs on each D-Sub)

The AxC-DS32IO offers high end audio professional features. All inputs can be individually used with on board high precision “SRC” (Sample Rate Converter) for solving multi sampling rate input frequencies and synchronisation issues.

Clock Synchronization for the AuviTran Audio Toolbox can be selected from each input.

Combined with other AuviTran Audio ToolBox cards, the AxC-DS32IO card unveils exciting possibilities to the professional audio systems

Up to two AxC-DS32IO cards can be inserted in an AVBx3-ES100 for two kinds of applications:

Live applications

   Live concerts, live broadcast studios and OB Vans

   Recording interface to Digital Audio Workstation (ProTools™ or equivalent)

Fixed installations

   Recording interface to Digital Audio Workstation (ProTools™ or equivalent)

Technical Specifications

General
 Size 200 mm x 100 mm x 40 mm – Format AuviTran Audio ToolBox platform cards
Power Supply +12V / +3.3V – Through AuviTran Audio ToolBox backplane
Storage: Temp/Humidity (non-condensing) -5°C to 70°C / Max 95% (non-condensing)
Operating: Temp/Humidity (non-condensing) 0°C to 50°C / 5% to 90% (non-condensing)
Connectors 2 x Female DB25 connectors ( 8 Stereo AES/EBU inputs and 8 Stereo AES/EBU Outputs on each DB25)
Audio Inputs
Number of inputs 16 Stereo AES/EBU digital inputs routed through the AuviTran Audio ToolBox backplane from the other cards
Audio Inputs Specifications
Sample rate
44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
A/D Resolution
24 bit
Input Impedance
110Ω
Input Specification
>AES balanced
Input Specification
All AES Inputs
Clock Synchro Sources
Asynchronous SRC available on each input ( individually on / off )
SRC (Sample Rate Converter)
-140dB THD+N / Frequency Range 8 kHz – 192 kHz
Audio Outputs
Number of outputs
16 AES/EBU Stereo digital outputs routed through the AuviTran Audio ToolBox backplane from the other cards
Audio Outputs Specifications
Sample rate 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
A/D Resolution 24 bit
Output Impedance 110Ω
Output Specification AES balanced on DB25 connector (RS422 Level)
Integration Environment
Audio ToolBox platform  AxC-DS32IO is one the cards for the AuviTran Audio ToolBox platform
AVS-Monitor
AVS-Monitor enables to remotely set, control and monitor an Audio ToolBox network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
OS Supported Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions




  • AxC-DS32IO 8 AES/EBU In with SRC + 8 AES/EBU Out card for Audio ToolBox on 2x SubD
  • AxP-DSX4F4M D-Sub to 4 male XLR and 4x female XLR 1m cable
  • AxP-DSX4F4M2M D-Sub to 4 male XLR and 4x female XLR 2m cable
  • AxP-DS32DS32 D-Sub to D-Sub 1m cable
